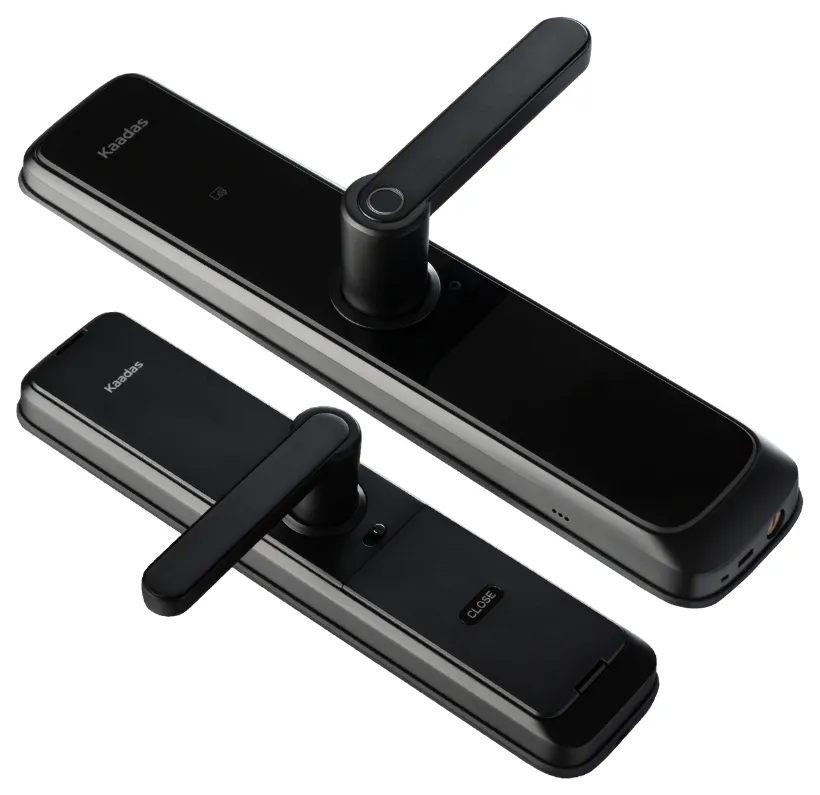

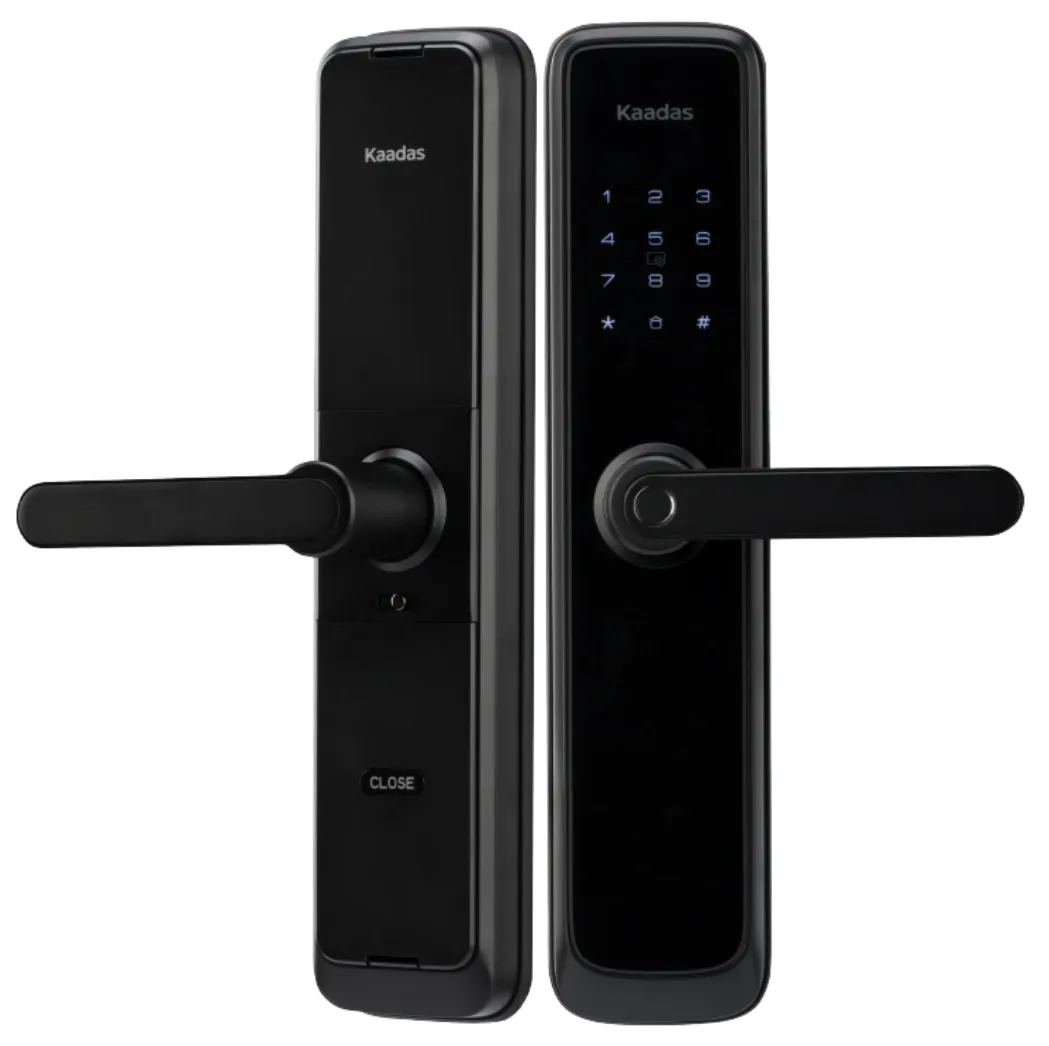

Lever Handle Mortise L7
Classic design, compact.
Key features
- Fingerprint, PIN, card or key. A Swedish FPC fingerprint sensor stores up to 100 fingerprints, with room for 100 RFID cards and PIN codes of 6 to 12 digits. Two cards and two mechanical keys come in the box.
- Fingerprint in the handle, one step to open. The sensor sits in the lever itself, so you grip the handle, it reads your finger and the door opens in one motion. The lock body locks itself once the door is closed.
- Auto lock in 1.5 seconds. In auto mode the deadbolt throws 1.5 seconds after the door closes. In manual mode you lock with the indoor CLOSE button or a credential outside, and a long press double locks from inside.

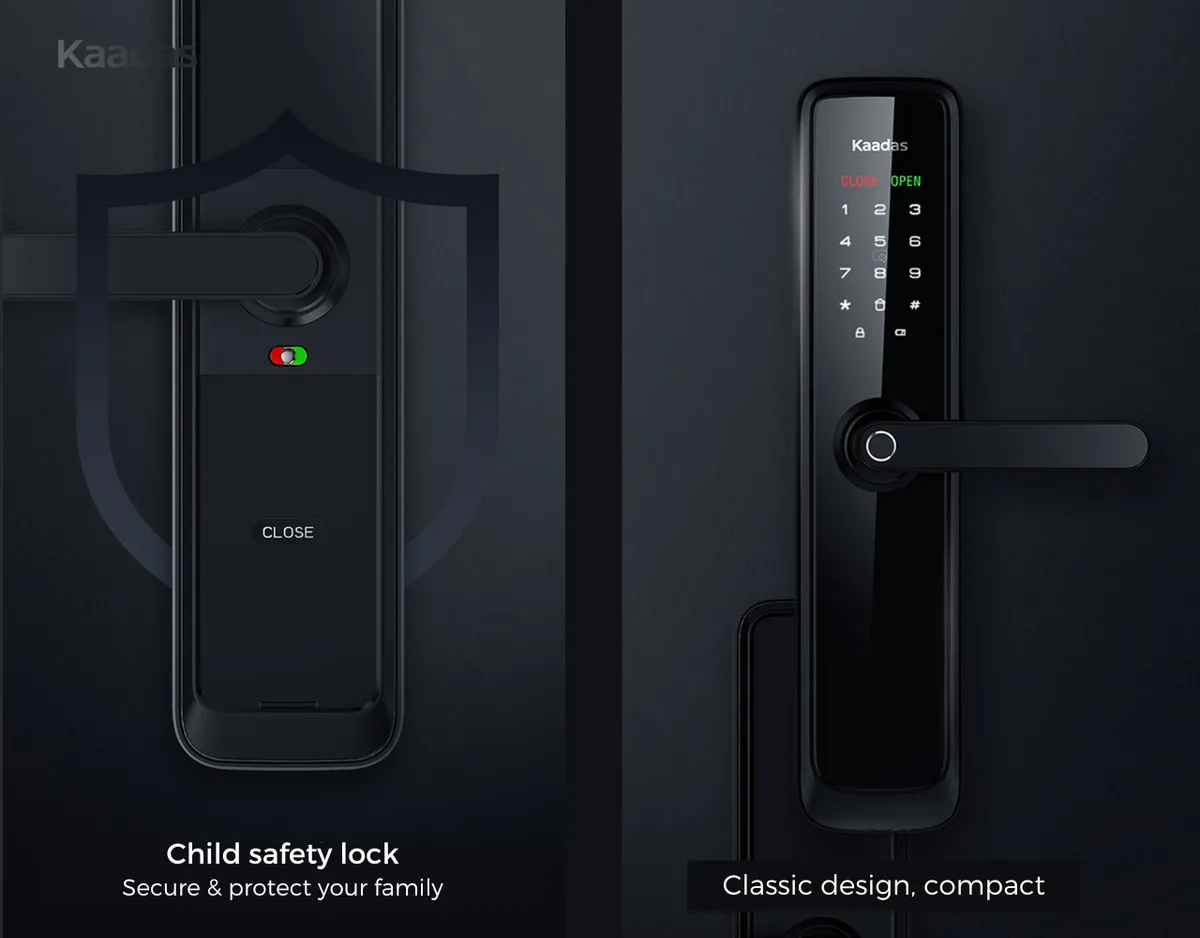

- Child safety lock. A safe handle switch on the indoor unit locks the inside lever so small children cannot let themselves out. Flip it back and the handle moves freely again.
- Privacy, defence and security modes. Privacy mode leaves only the master PIN and key working outside, defence mode alarms if the door opens from inside, and security mode asks for two credentials. Random digits can hide your real PIN.
- Eight AA batteries, USB backup. Eight AA batteries in two groups, and one group alone runs the lock. A voice prompt warns when they are low, and a 5 V power bank on the micro USB port revives a flat lock.
- Dual unlocking add-on. Pair the L7 with a Kaadas R8GD or R9KFV gate lock and the Dual Sync Unlock Module, and one fingerprint, PIN or card opens the gate and the door together.
Specifications
What's in the box
- L7 lock, front and back escutcheons with rubber gaskets
- Mortise, strike plate assembly, mounting plate, accessory kit and installation template
- Mechanical keys × 2 in a sealed key box, RFID cards × 2
- User manual, warranty card, micro-fibre wiper
Installation and warranty
- Professional installation at your home by Keyvo, included with every purchase.
- Full setup of the app, fingerprints and codes before we leave.
- Local warranty support, serviced in Singapore.
- Cover, exclusions and service charges are set out in our warranty policy.
Locks itself, and looks after the kids.
In auto mode the deadbolt throws 1.5 seconds after the door closes, and a long press of the indoor CLOSE button double locks it for the night. Flip the safe handle switch to red and the inside lever is locked, so a child cannot wander out. Defence mode adds an alarm if the door is opened from inside while you are away.

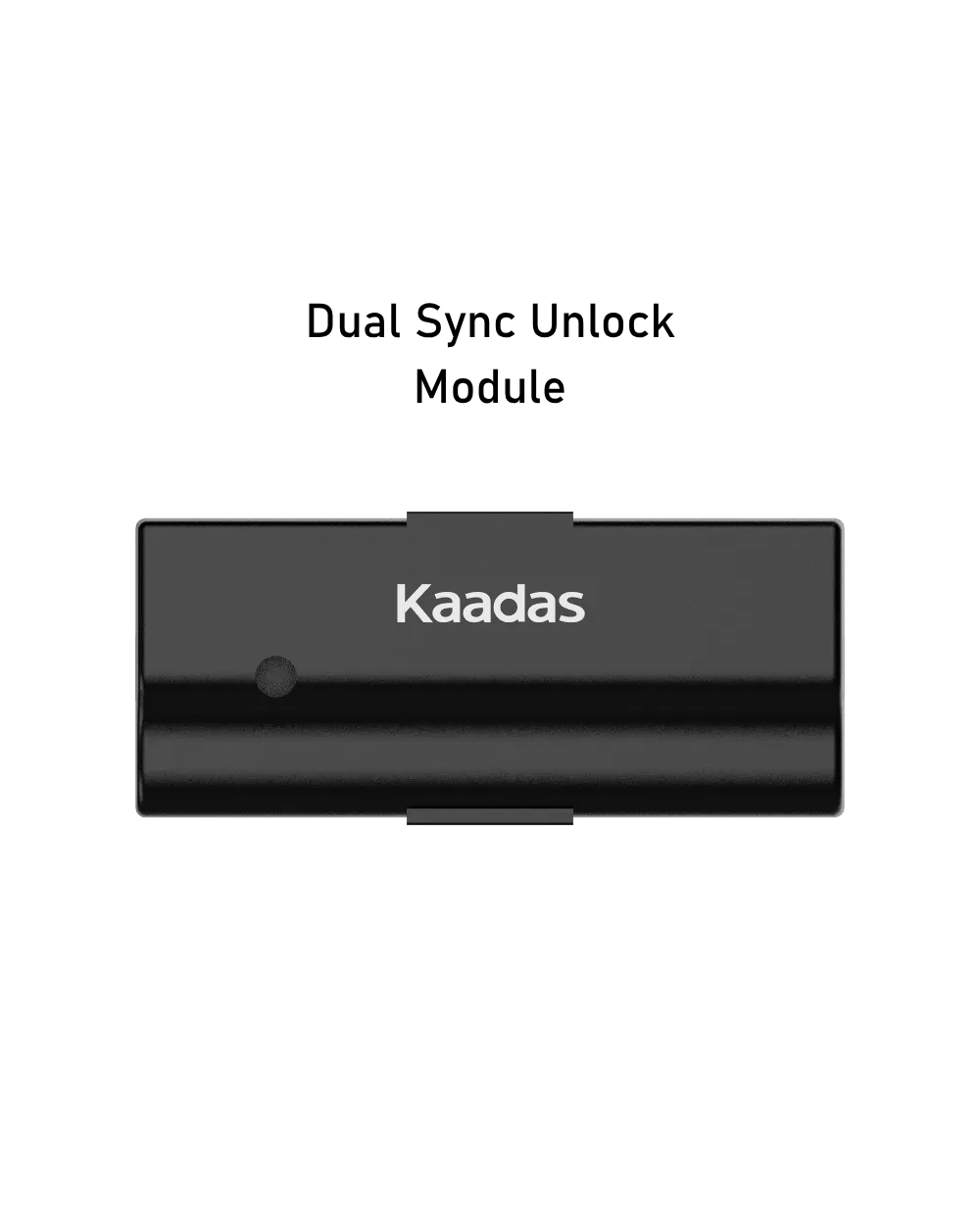

Gate and door in one motion.
Add the Dual Sync Unlock Module and pair the L7 with a Kaadas R8GD or R9KFV gate lock. One fingerprint, PIN or card then opens both the gate and the door together, so there is no stopping between them with groceries in hand.
The Dual Sync Unlock Module is an optional add-on.

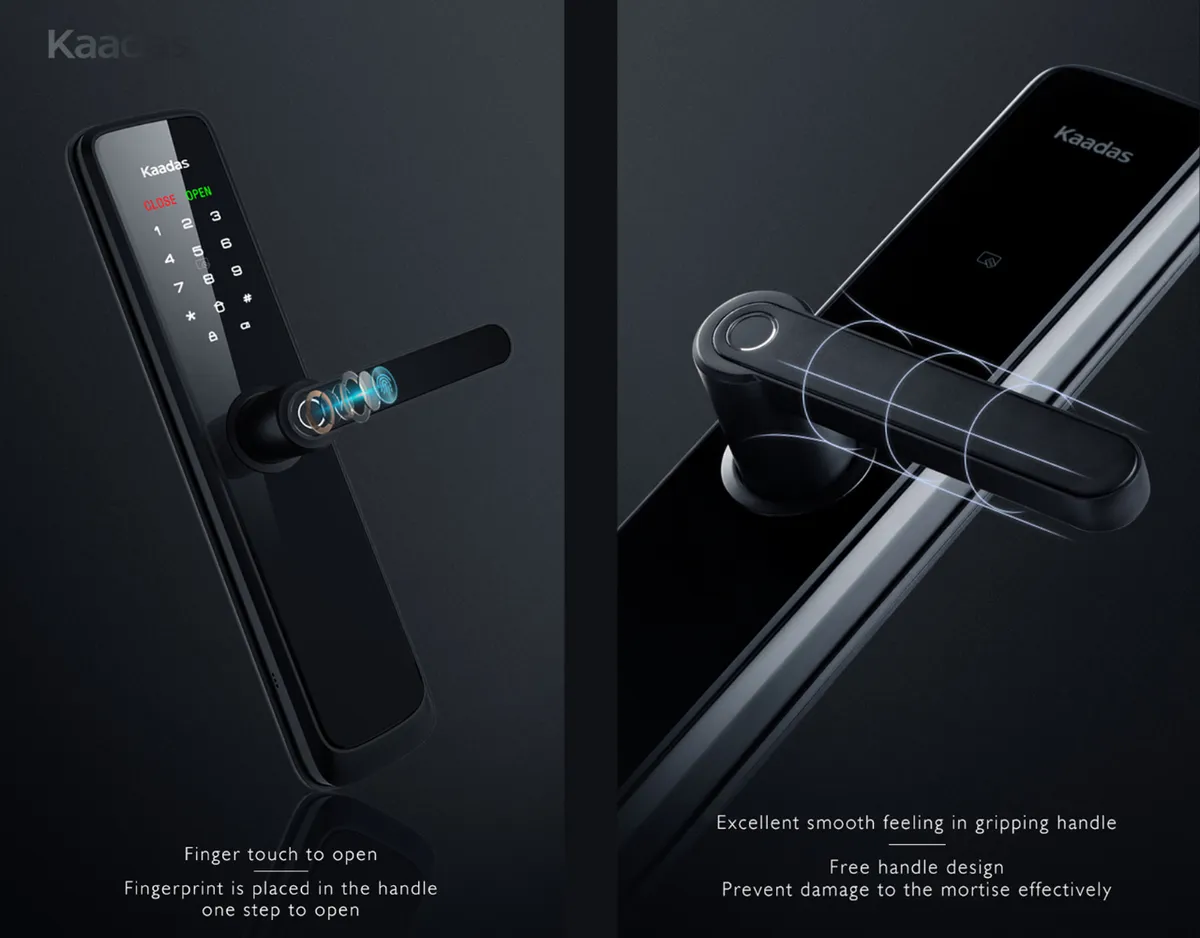

Your finger is the key.
The Swedish FPC fingerprint sensor sits in the lever handle, so gripping the handle reads your finger and opens the door in one step. It stores up to 100 fingerprints, and the wide tempered glass touch screen takes PIN codes and RFID cards when you would rather not use it.
