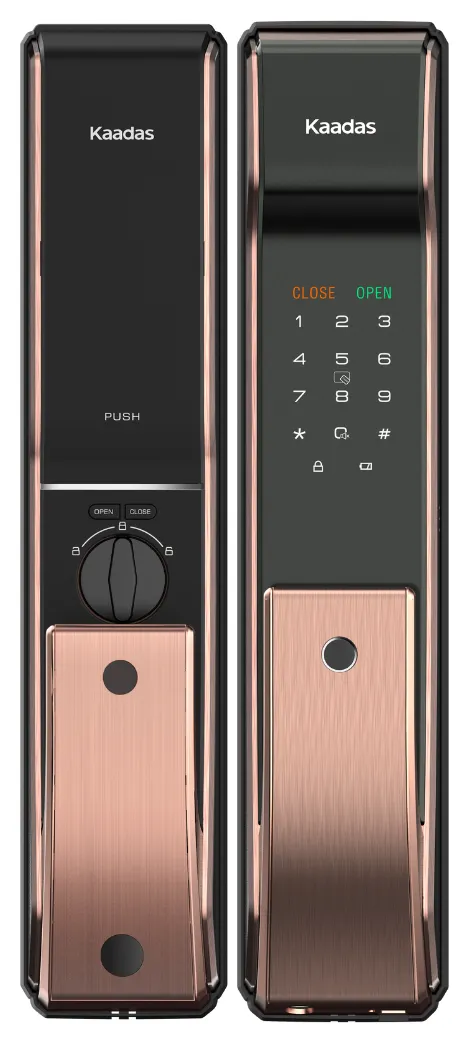

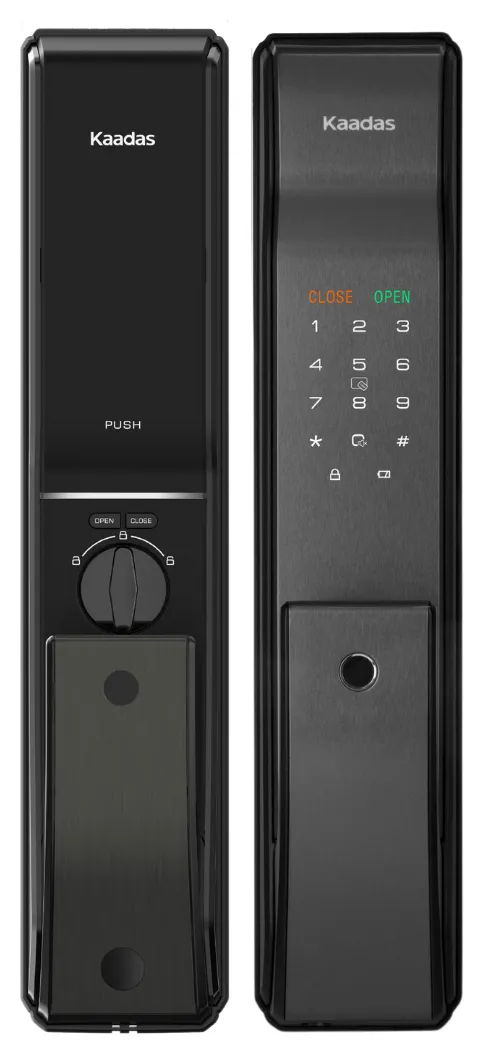

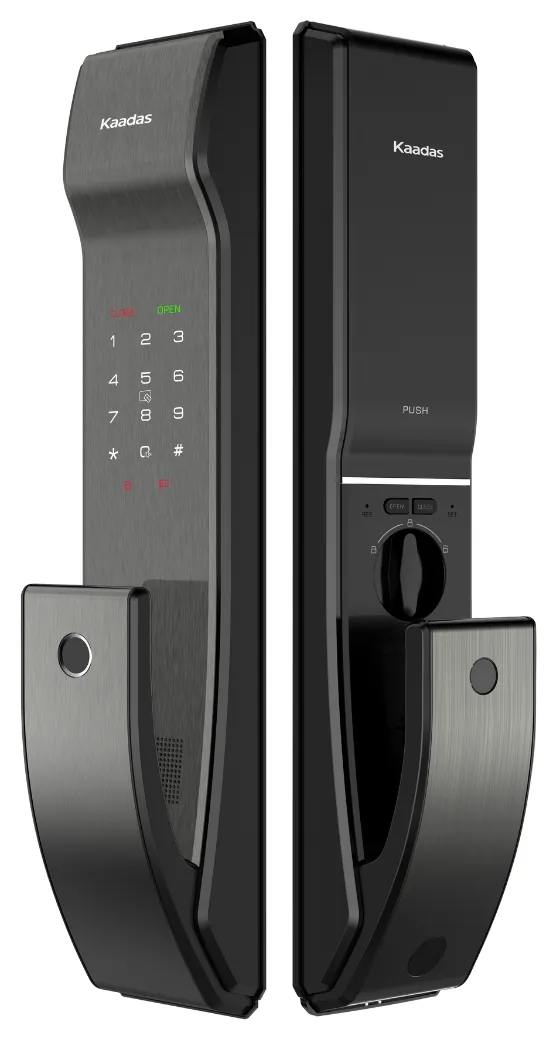

Push-Pull Mortise K9-5W
Key features
- WiFi and the Kaadas app. Join your home WiFi straight from the keypad, then manage PIN codes, fingerprints and cards from the Kaadas app and issue one-time PINs for visitors.
- Sweden FPC fingerprint sensor. Registers up to 100 fingerprints. Touch the sensor on the outdoor handle, wait for the prompt, then push or pull the door open.
- PIN codes, RFID cards and keys. One master PIN plus 20 user or temporary PINs, RFID cards (2 provided, up to 100 registered) and 2 mechanical keys, with the keyhole on the underside of the outdoor unit.
- One step unlock. Verify, then push or pull: the automated lock body releases at once and locks itself again when the door closes. Automatic mode can be switched off to lock by hand.
- Security, privacy and defence modes. Security mode asks for two credentials, such as fingerprint plus PIN. Privacy mode admits only the master PIN from outside, and defence mode sounds the alarm if anyone unlocks from inside while you are out.
- Safe handle child lock. Indoors you leave by holding the handle and covering its sensor. Switch the sensor off and the door only opens with the OPEN button, so small children cannot let themselves out.
- Never locked out, fire rated certified. If the batteries run flat, a 5 V power bank on the micro USB port powers the lock, and an emergency knob inside opens the door. The aluminium alloy panels carry the Kaadas fire rated certification.
Specifications
What's in the box
- K9-5W lock, front and back panels with rubber gaskets
- Mortise, strike plate assembly, mounting plate and installation template
- Mechanical keys × 2, user card, screw pack
- User manual, scouring pad
Installation and warranty
- Professional installation at your home by Keyvo, included with every purchase.
- Full setup of the app, fingerprints and codes before we leave.
- Local warranty support, serviced in Singapore.
- Cover, exclusions and service charges are set out in our warranty policy.
Push or pull. That is the whole step.
There is no handle to turn. Touch the fingerprint sensor, enter a PIN or tap a card, then push or pull the door: the automated lock body releases at once and locks again when the door closes. Inside, hold the handle and cover its sensor to walk out, or press OPEN. Pair it with a Kaadas gate lock through the optional Dual Sync Unlock Module and one fingerprint opens gate and door together.
Privacy mode, defence mode, emergency knob.

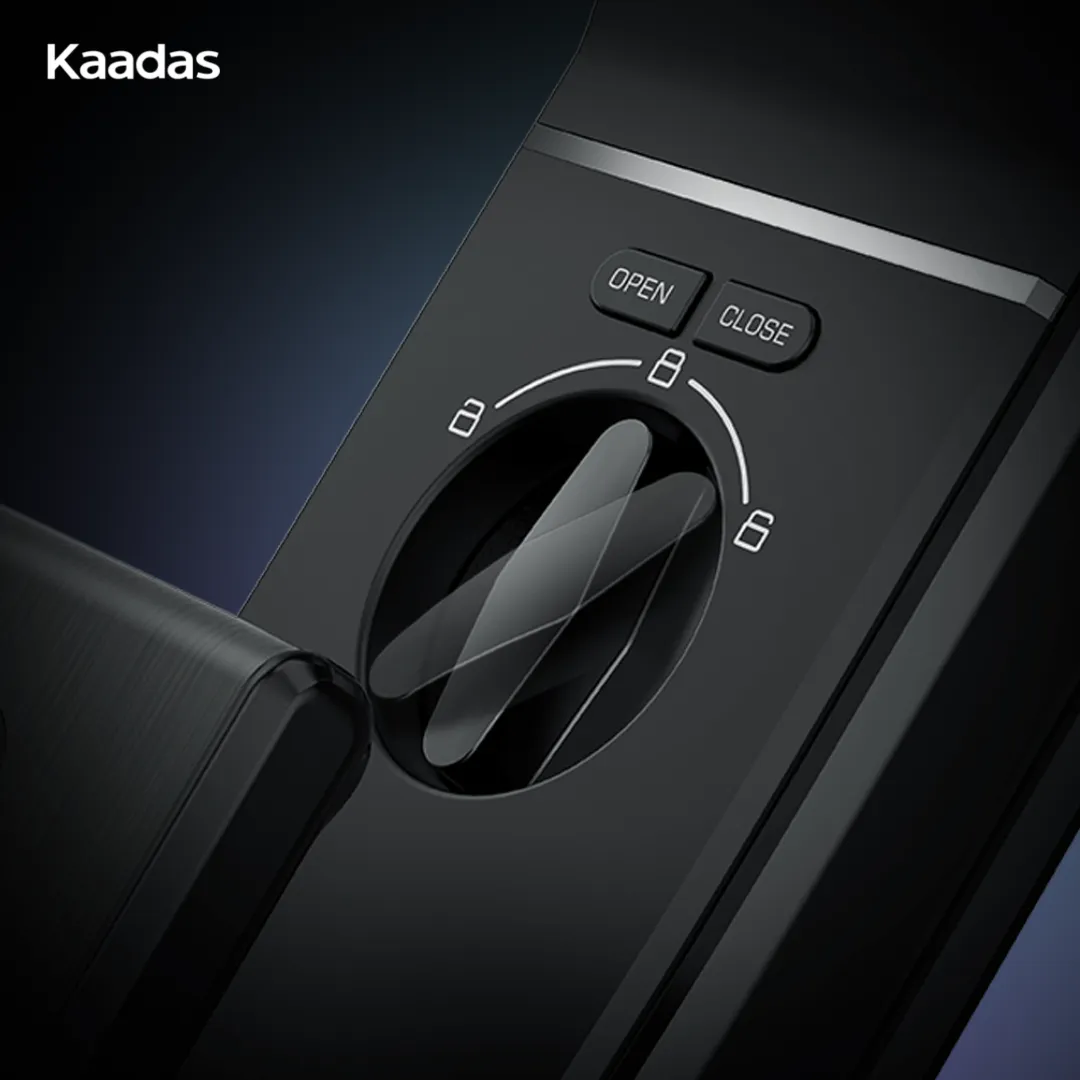

Hold CLOSE for 3 seconds before bed and the lock enters privacy mode: only the master PIN opens it from outside. Going out? Press the defence mode key on the keypad and the alarm sounds if anyone unlocks from inside. Security mode demands two credentials at once, and if the electronics ever fail, the indoor knob still opens the door.
WiFi in, one-time PINs out.

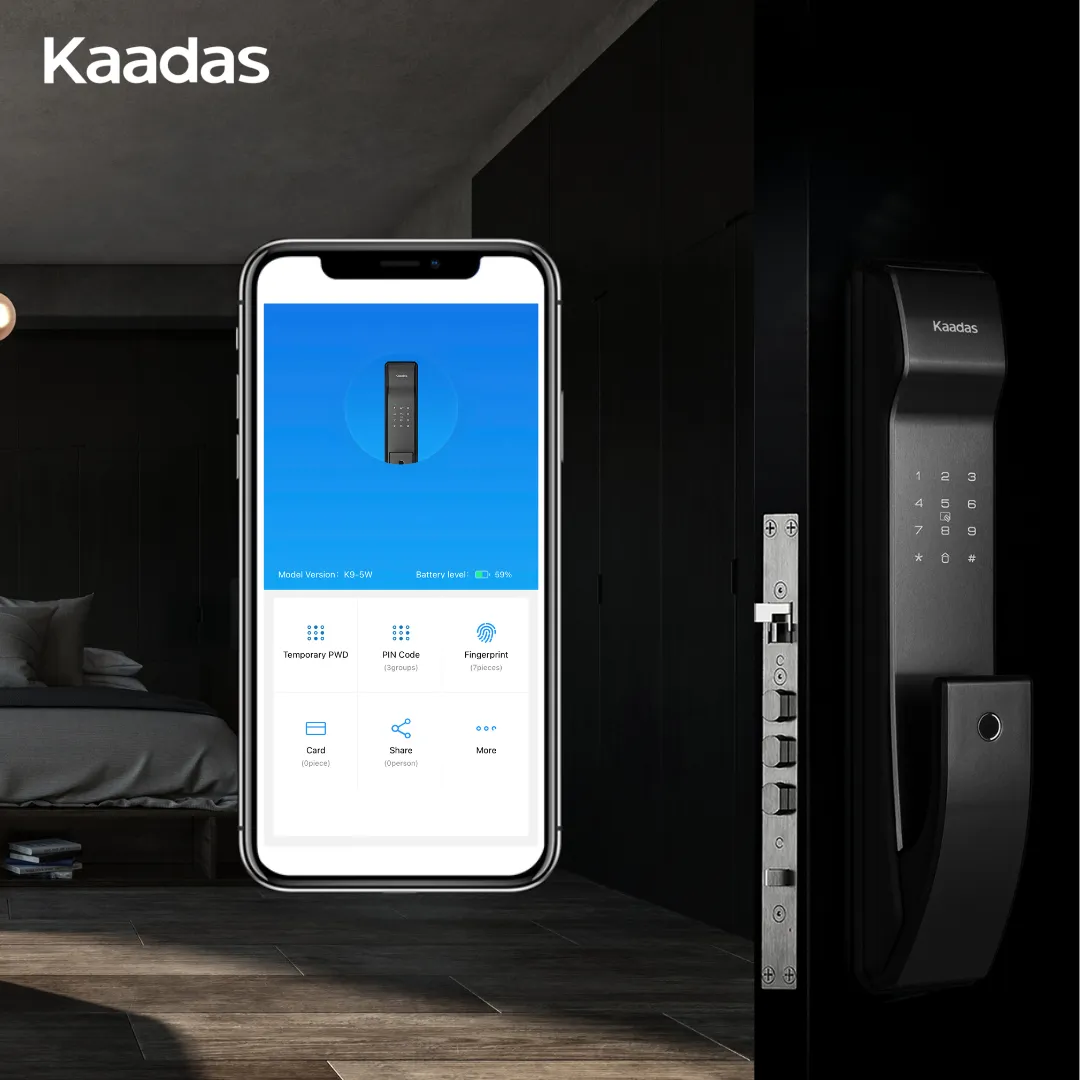

The K9-5W joins your home WiFi straight from the keypad, so the Kaadas app can manage PIN codes, fingerprints and cards without you standing at the door. Expecting a guest or a delivery? Issue a one-time PIN (app OTP) from the app instead of sharing your own code.
More from Kaadas
Ready for the K9-5W?
Send us a photo of your door on WhatsApp and we'll confirm fit, quote with installation, and book a time.
