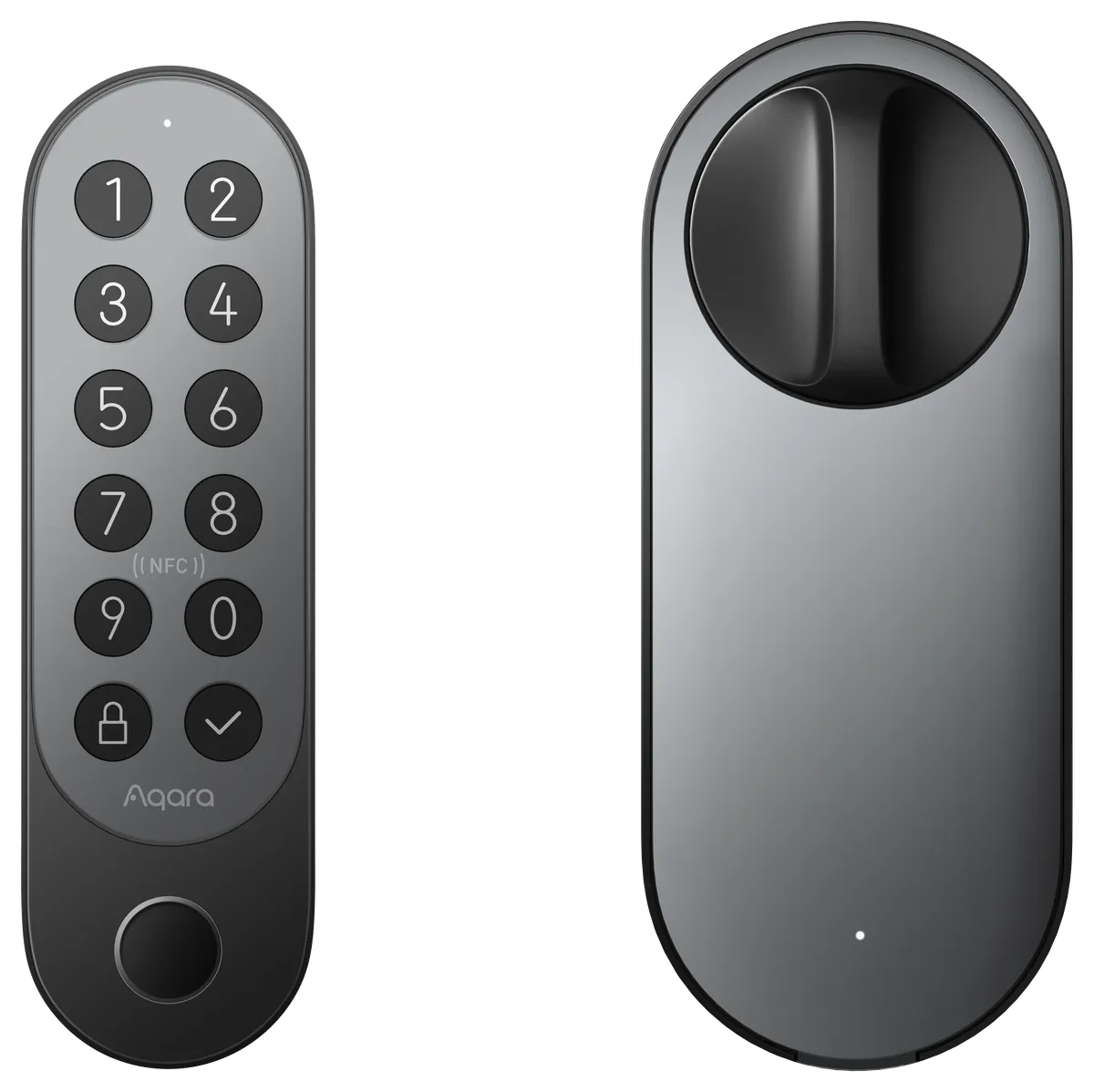

Smart Lock U200
Ultimate Smart Lock Retrofitted for You.
Key features
- Apple Home Keys and multiple unlock methods. Unlock with Apple Home Keys through an Apple 2-in-1 Matter controller, or use fingerprint, password, or NFC. One-time and periodic passwords make it easy to share access.
- Quiet Unlock and smart software control. Quiet Unlock Mode, automatic alerts and hands-free unlocking work alongside an activity log, auto locking, and anti-peep PIN protection. Passage Mode and Do Not Disturb Mode are available in the Aqara Home app.
- Hub requirements. No hub is required for basic local operation in Aqara Home. Remote control and automations through Aqara Home require an Aqara Hub M3. Matter integration requires a compatible Matter controller and Thread border router.
- Native Matter over Thread. Works with Apple Home and Google Home through Matter over Thread, with extended battery life and remote management.
- Rechargeable battery and multiple power options. IPX5 waterproofing and a -15°C to 66°C operating range. The door lock runs on a rechargeable Li-ion battery for up to 6 months, the keypad runs on AAA batteries, and a hardwired 12V-24V option is also supported.
- Easy retrofit installation. Fits over your existing lock without drilling or modifications, and is compatible with Euro profiles and select Scandi cylinders. Confirm compatibility with your door before buying.
- AES encryption and fingerprint security. AES encryption and fingerprint module encryption binding protect your personal data and access points.
Specifications
ModelEL-D02D

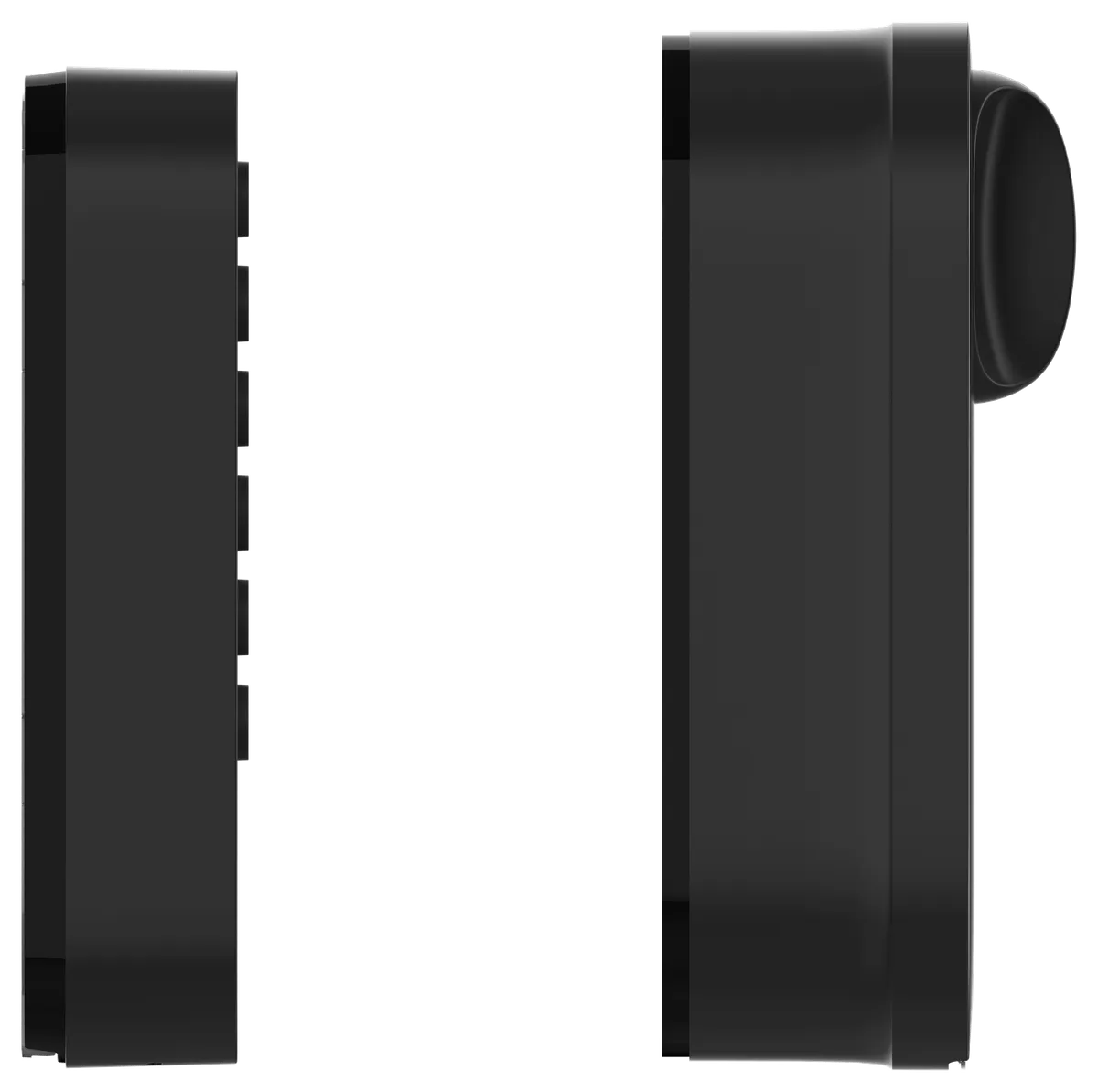

Door lock dimensions62.3 × 60.6 × 152.5 mm
Keypad dimensions42.7 × 33 × 146 mm
PowerDoor lock: rechargeable Li-ion battery 7.4V. Keypad: 4 LR3 AAA 1.5V batteries. Wired input: 12V-24V AC 0.2A or 12V-24V DC 0.5A
Battery lifeUp to 6 months on the door lock's rechargeable battery
ConnectivityThread, Bluetooth 5.1, NFC
Water resistanceIPX5
Operating temperature-15°C to 66°C
Operating humidity0 to 93% RH, no condensation
Hub requirementsNone for basic local use. Aqara Hub M3 for remote access. Matter needs a controller and Thread border router
What's in the box
- Smart Lock U200 × 1, User Manual × 1
- Aqara Rechargeable Battery × 1, AAA Battery × 4, AA Battery Adapter × 1
- Cylinder Adaptor Kit × 1, Hexagon Screwdriver × 1, Screw Kit × 1
- USB-C to USB-A Cable × 1, Power Bank Pouch × 1
- 3M Sticker × 1, EVA Pad Kit × 1, Replaceable Panel × 1, NFC Card × 1
Installation and warranty
- Professional installation at your home by Keyvo, included with every purchase.
- Full setup of the app, fingerprints and codes before we leave.
- Local warranty support, serviced in Singapore.
Price on enquiryInstallation included
Enquire on WhatsAppTap, tap, open a smart home.
Unlock with Apple Home Keys through an Apple 2-in-1 Matter controller, or use fingerprint, password and NFC. Temporary one-time and periodic passwords make it easy to share access.
Rechargeable and weatherproof.
IPX5 waterproofing and a -15°C to 66°C operating range keep the U200 working outdoors. The door lock runs on a rechargeable Li-ion battery for up to 6 months, the keypad on AAA batteries, with a hardwired option too.
Fits over your existing lock.
The U200 installs over your existing lock without drilling or modifications, and is compatible with Euro profiles and select Scandi cylinders. Check compatibility with your door before buying.
More from Aqara
Contact
Ready for the U200?
Send us a photo of your door on WhatsApp and we'll confirm fit, quote with installation, and book a time.
